MetecnoKasset

Curtain or Window Wall System.

  • A complete system

  • Tested & Passed all criteria for AS 5113 – External wall and Fire Spread requirements

  • Manufactured in Australia

  • New level of fire protection

  • New level of thermal properties

  • Prefab sections delivered direct to site

  • Slot into place and secure

  • Build, clad and insulate all in one

MetecnoKasset is a durable, insulated wall and ceiling panel with a modified PIR (Polyisocyanurate) fire-retardant core and high performing thermal properties. MetecnoKasset is available in a range of COLORBOND® colours, a palette of choice to create an inspiring interior and exterior finish.

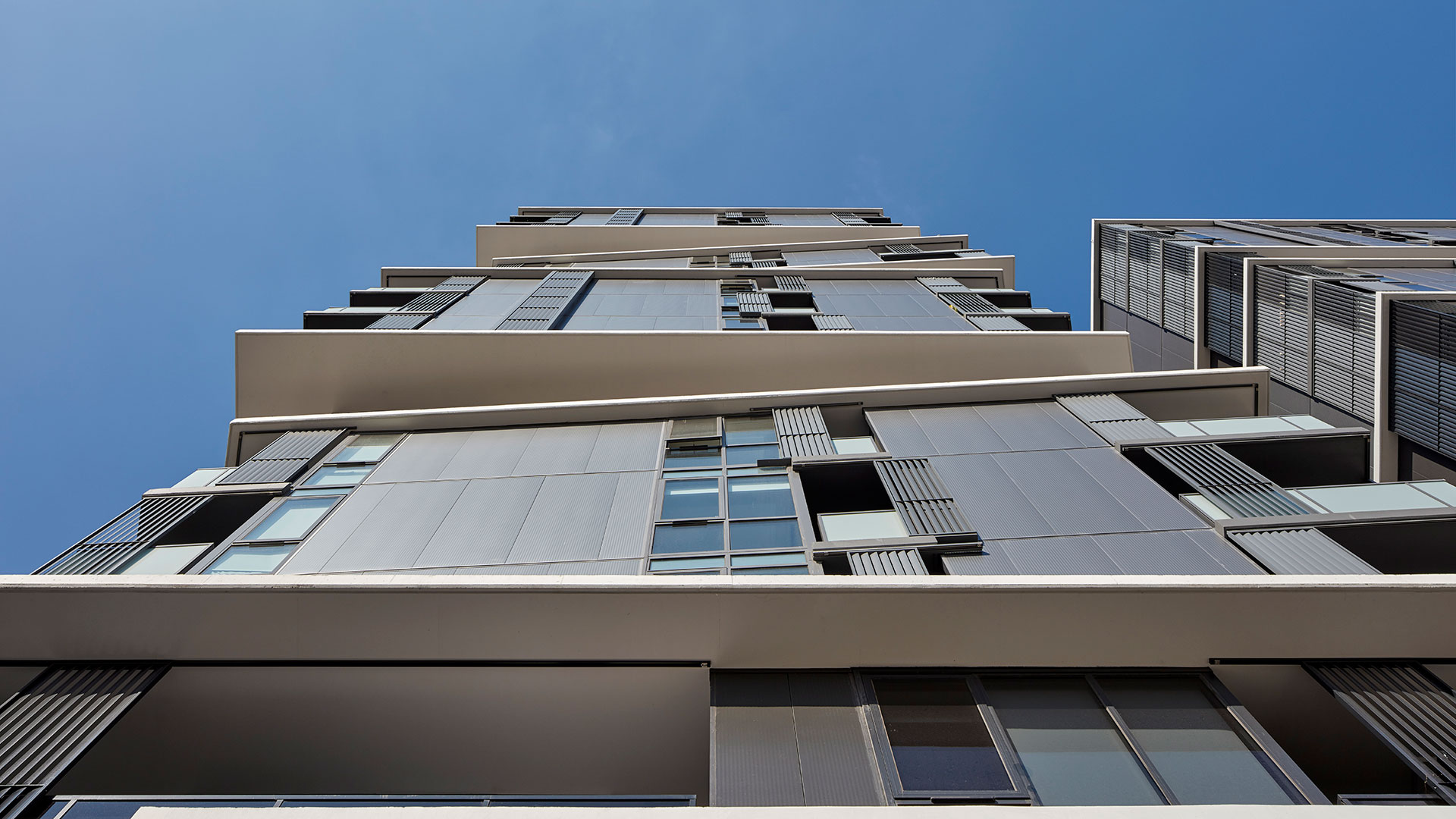

kasset_yorkshire_brewery_1

Innovation

  • PIR Full Curtain or Window Wall system
    • Modular unit for seamless window/ wall junctions
    • Durable  & versatile Architectural System with extensive colours and finishes
  • Suitable for low and high rise buildings (wind rated up to 250m)
    • Testing & Engineering in Australia by Ian Bennie & Associates & Inhabit Group
    • Registered Design and Regulation 1507: Certificate of Compliance
    • Full test rig accreditation to Australian standards AS/NZS 4284:2008 (Structural SLS, Air Infiltration,
      Water Penetration, Structural ULS.)
  • Fast & economical alternative to tilt panel
    • Light weight and easy to install.  Installed up to 50% faster than traditional systems.
    • No need for perimeter scaffolding. Installed over the handrails or behind the screens
    • 2 floors a week floor cycle at Yorkshire Brewery Apartments
Module Properties
Module Thickness115 mm
Module HeightMade to measure up to 3800mm in height
Module WidthMade to measure incorporating 1100mm wide panels
Mass22.1 kg/m2
Acoustic PropertiesRw 25-37*
Thermal Performance‘R’ Value: 4.91 W/m2K; ‘U’ Value: 0.20 m2K/W
Module compositionModified FM approved PIR (Fire –retardant Polyisocyanurate) panel with prefinished profiled steel skins and internal skin lined with 6mm fibre cement.
Frame MaterialAnodized or Powder coated extruded Aluminium with extruded weather seals
ColoursChoice of any Colorbond® standard, metallic or custom colour for external skin, frame and trims.
FinishesPanel surface can be supplied in Plain, Fineline, Satinline or Ribbed profiles.

* depending on system

Tests & Engineering
Façade Fire Evaluation testing to NATA accreditation requirements by Exova Warringtonfire Aus.Testing to AS 5113 according to their tendency to limit the spread of fire across their surface and between neighbouring buildings and integrates international standard test methods where practicable.
Building performance testing in Australia to NATA accreditation requirements by Ian Bennie & AssociatesStructural SLS, Air Infiltration, Water Penetration and Structural ULS test procedures and performance requirements in accordance with standard AS/NZS 4284:2008, Testing of Building Facades. Optional tests: including BMU

restraint, seismic loading and seal degradation.
Engineering certification to the provisions of the section B1 of the Building Code of Australia and the Australian Standards by Inhabit AustralasiaAS/NZS 1170.0:2002- Structural design actions - Part 0: General Principles

AS/NZS 1170.1:2002, Structural design actions - Part 1: Permanent, imposed & other actions

AS/NZS 1170.2:2002, Structural design actions - Part 2: Wind actions

AS/NZS 1664.1:1997, Aluminium Structures

AS4100:1998, Steel Structures
Codemark CertificationComing Soon

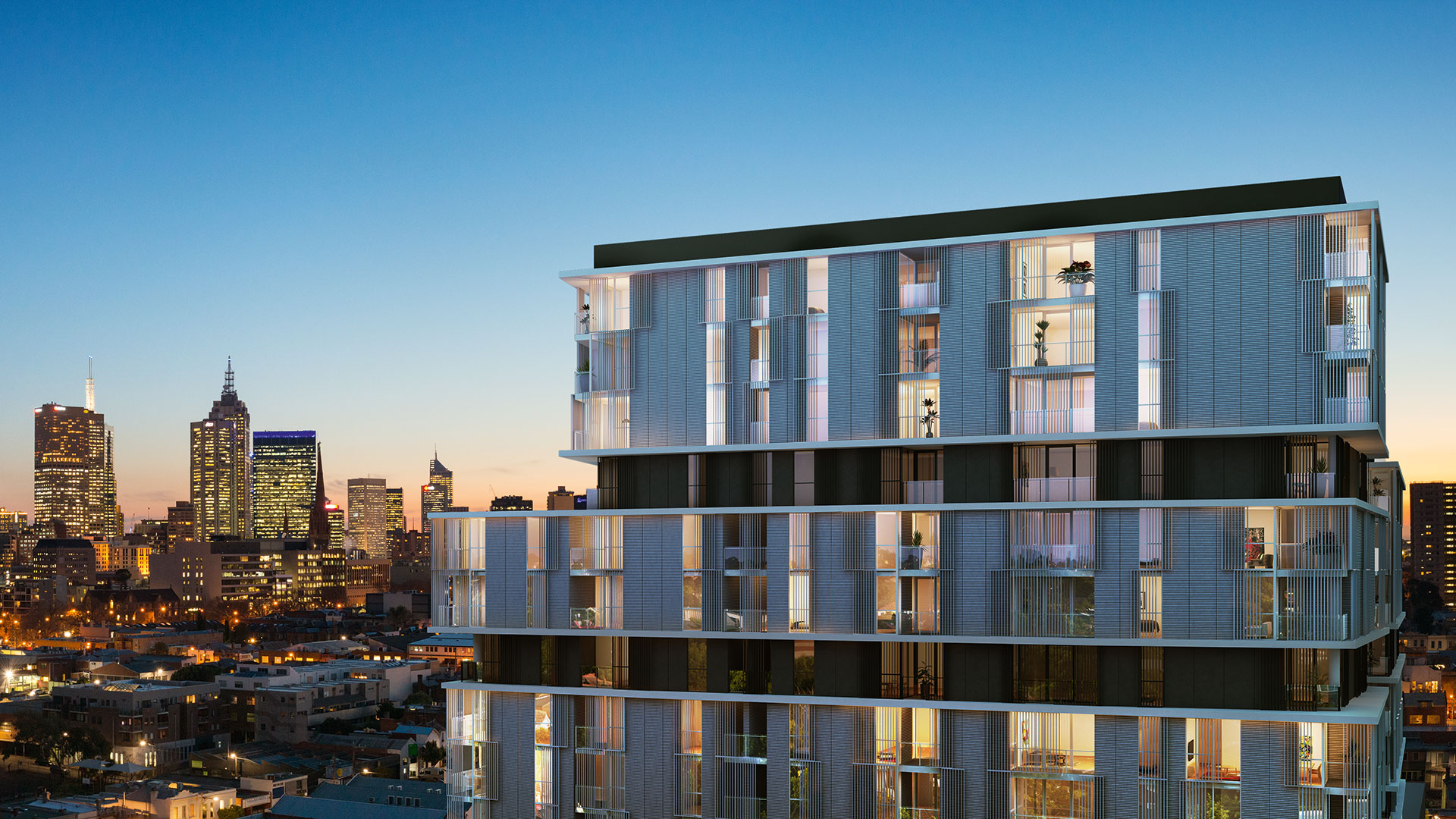

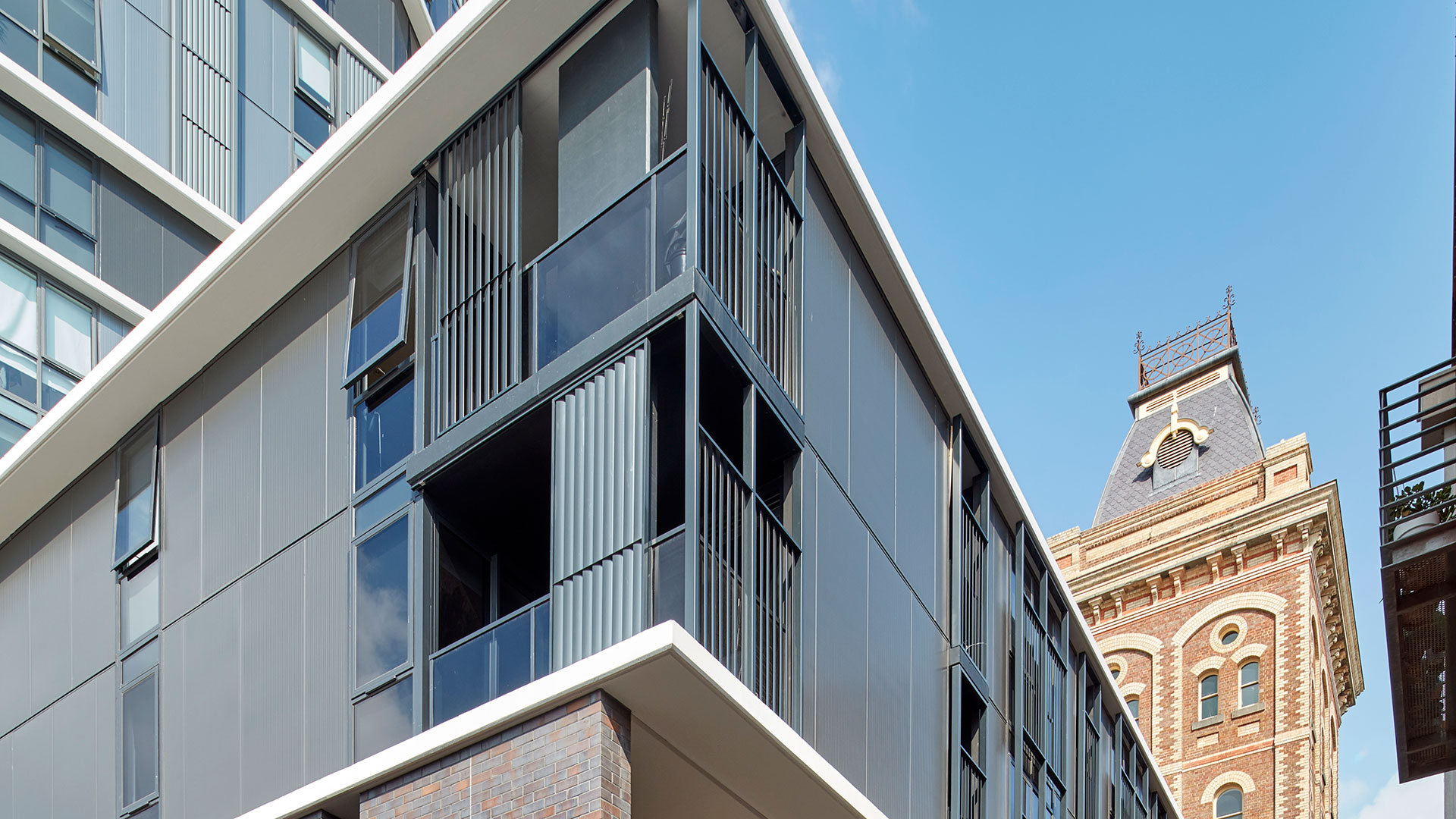

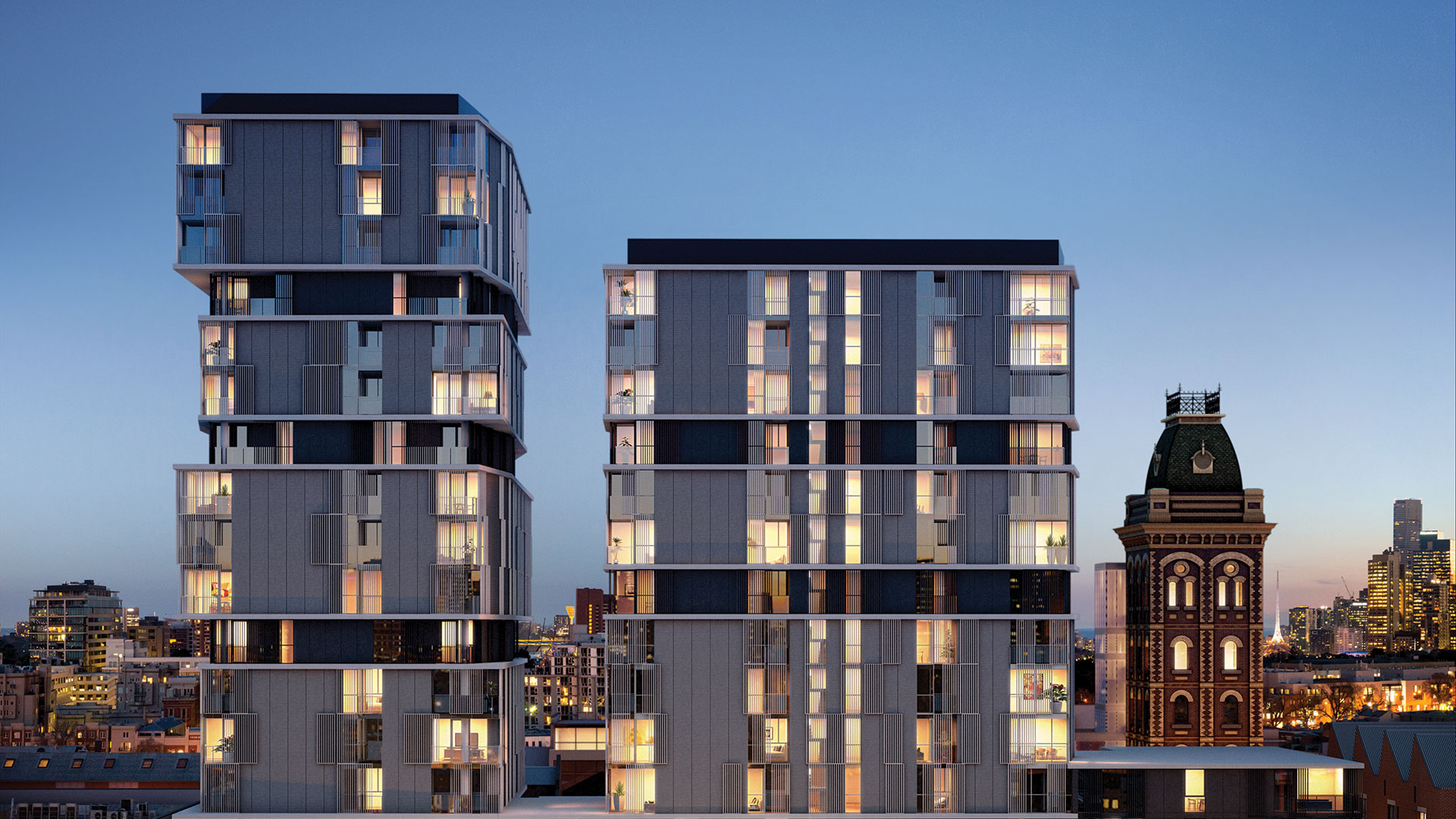

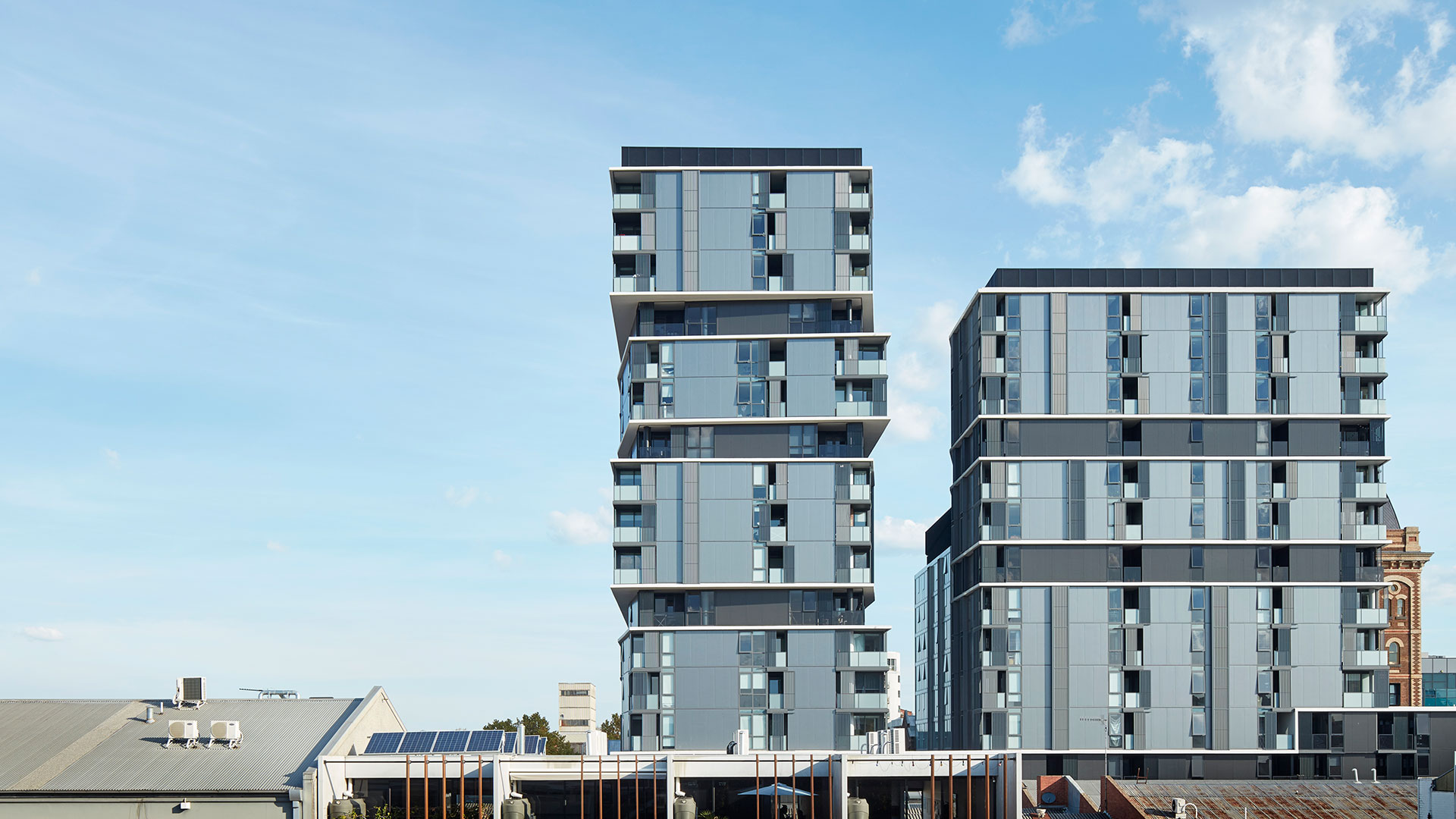

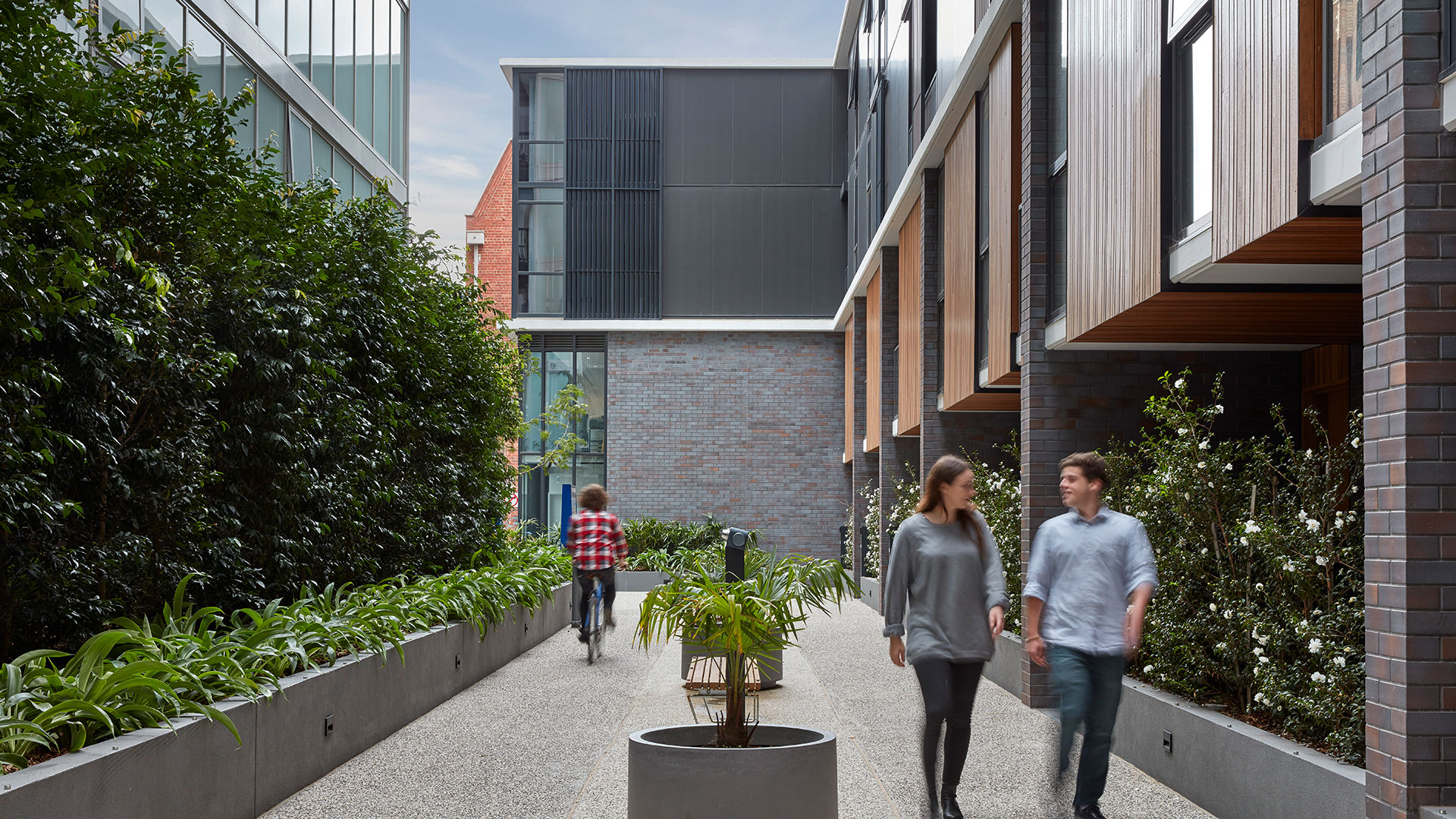

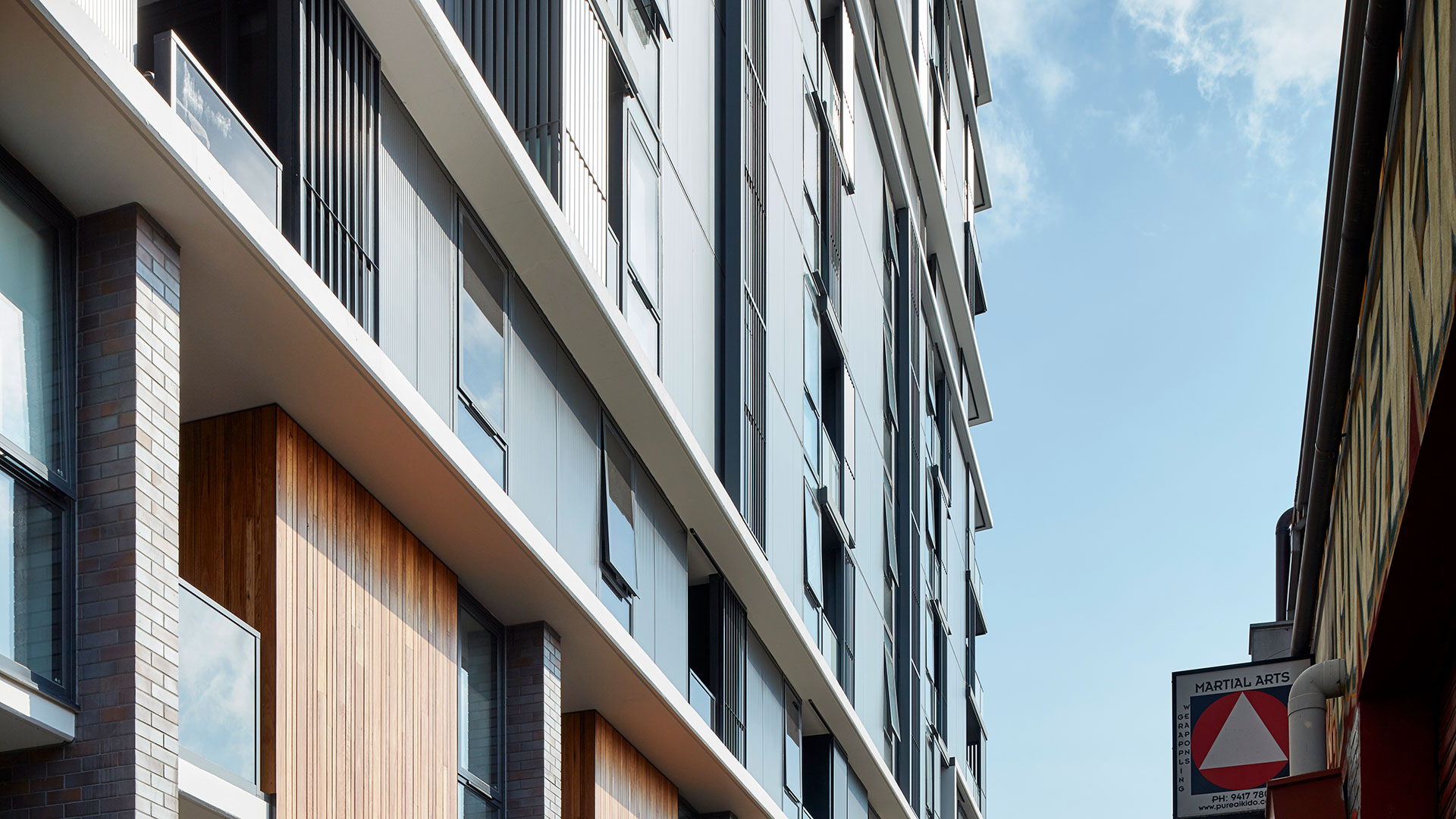

Yorkshire Brewery

MetecnoKasset was the perfect choice for the Yorkshire Brewery. With limited access for cranes and scaffolding, standard curtain wall and insulated panel systems were difficult to install. MetecnoKasset is able to be installed from inside the building, allowing the developers to use insulated panel products without the added costs and logistics.
