SecureLap

The New Standard for Commercial Roof Laps

SecureLap® is a unique roof lap jointing system developed specifically for insulated panel roofing. SecureLap® changes the way long run panel roof runs are designed and installed. SecureLap provides a solution to the troublesome “sheet to sheet endlap” and offers a real alternative to the more expensive “expansion joint” system which requires extra purlins and purlin cleat modifications.

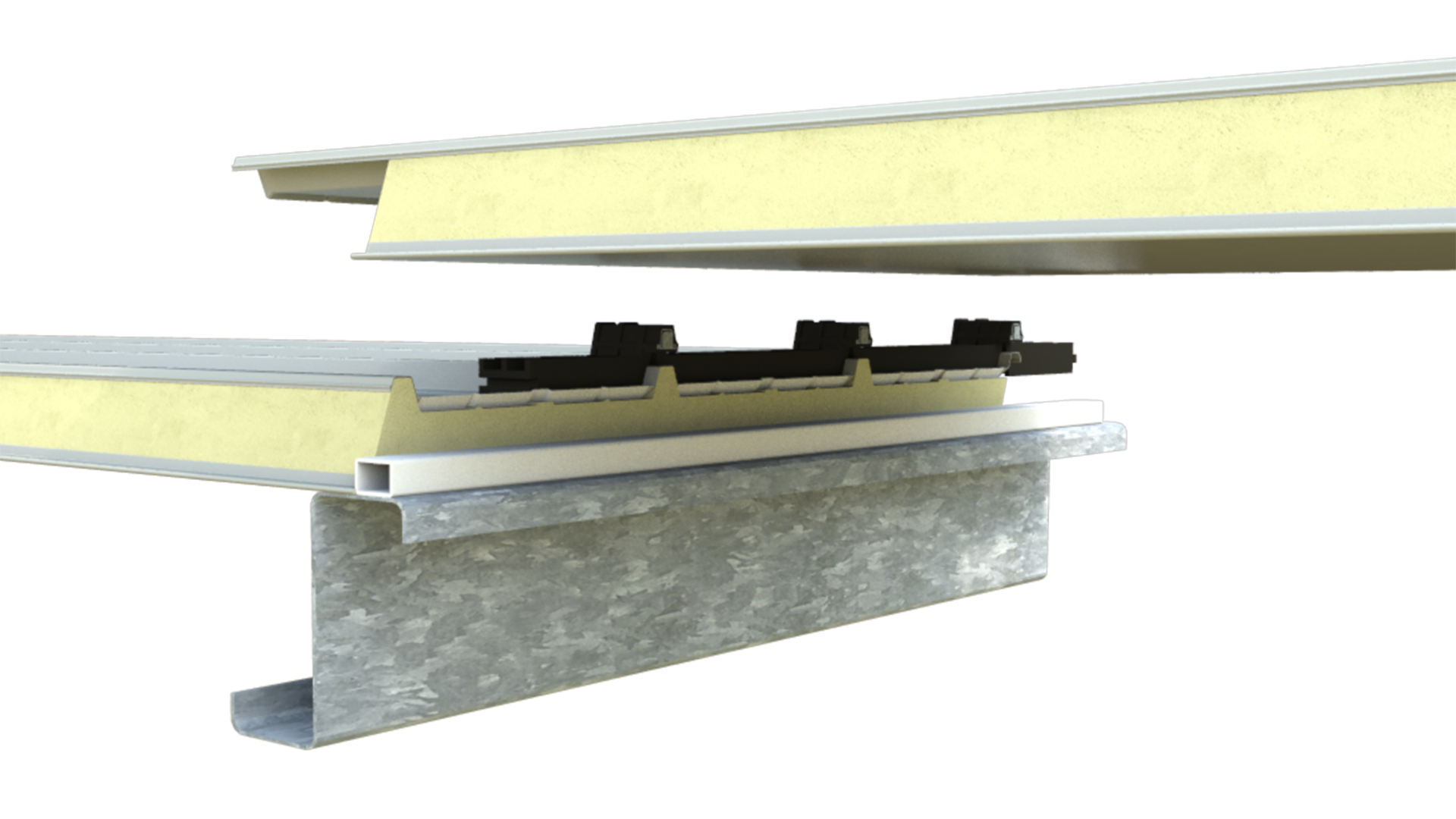

The SecureLap® roof jointing system is designed for pierced fixed panel roofing. It allows for the installation of lapped panels on standard purlin framing and provides a combination of a strong joint and a weather-resisting seal between lapped sheets.

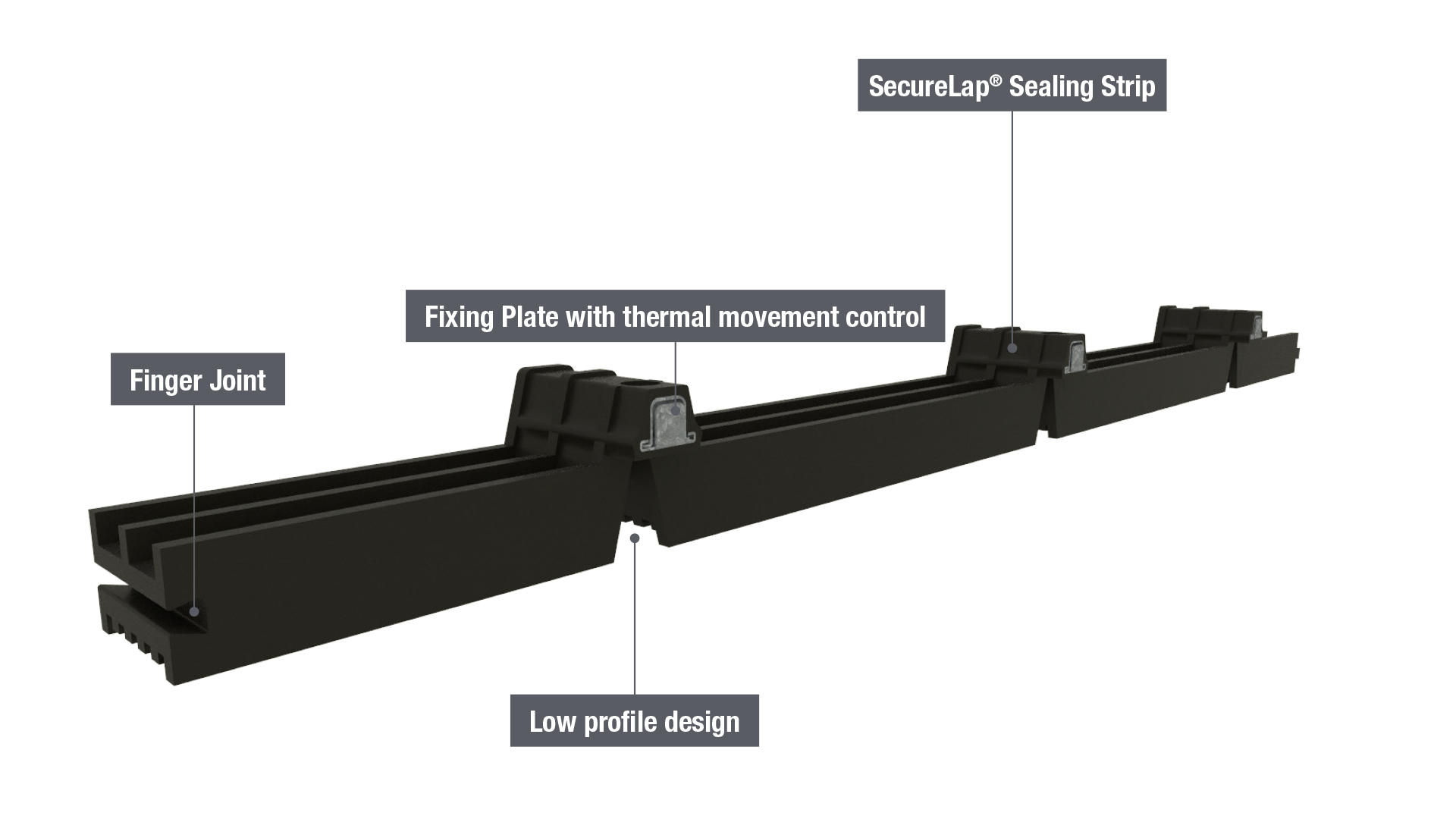

SecureLap® is significantly easier to install than current lapping alternatives. After the lower level panel is secured to the bottom half of the jointing purlin, the SecureLap sealing strip is fitted. The upper level sheet packer is then fitted to the top half of the jointing purlin before the upper level panel is fitted. (See more details in the installation process). Patented, cutting edge technology provides strength and water ingress security while preserving the integrity of the existing roof warranty.

Features/Benefits

  • Cutting edge insulated panel end-lapping system for long monoslope roof
  • Uniform purlin height requires no step in supporting structure or the need for structural modification. No additional purlins are required
  • Suits profiles for roof slopes as low as 2˚
  • No Sealant or butyl tape required allowing easy panel alignment during installation
  • Allows roof turn up for added security against water ingress
  • Low profile seal provides improved visual roof continuity
  • Independently weather tested by the CSIRO
  • BlueScope Steel endorsed
  • Significant savings on installation labour
  • Conforms to Australian Standards AS 4046.9
  • Mechanical connection and roof turn-up provides water tight confidence
  • Sealed lap providing a reduction in air leakage
  • Lower transport and handling costs
  • Allows thermal expansion and contraction
  • Preserves the existing warranty of the roof
