MetecnoTherm®
Insulated Board Systems
MetecnoTherm® sets new standards in PIR insulated board systems. It is cost effective insulation solution for integration into many applications in commercial and residential markets where rigid insulation boards are required. PIR (Polyisocyanurate) is a medium density thermoset, high strength foam with excellent thermal, acoustic and fire performance properties.

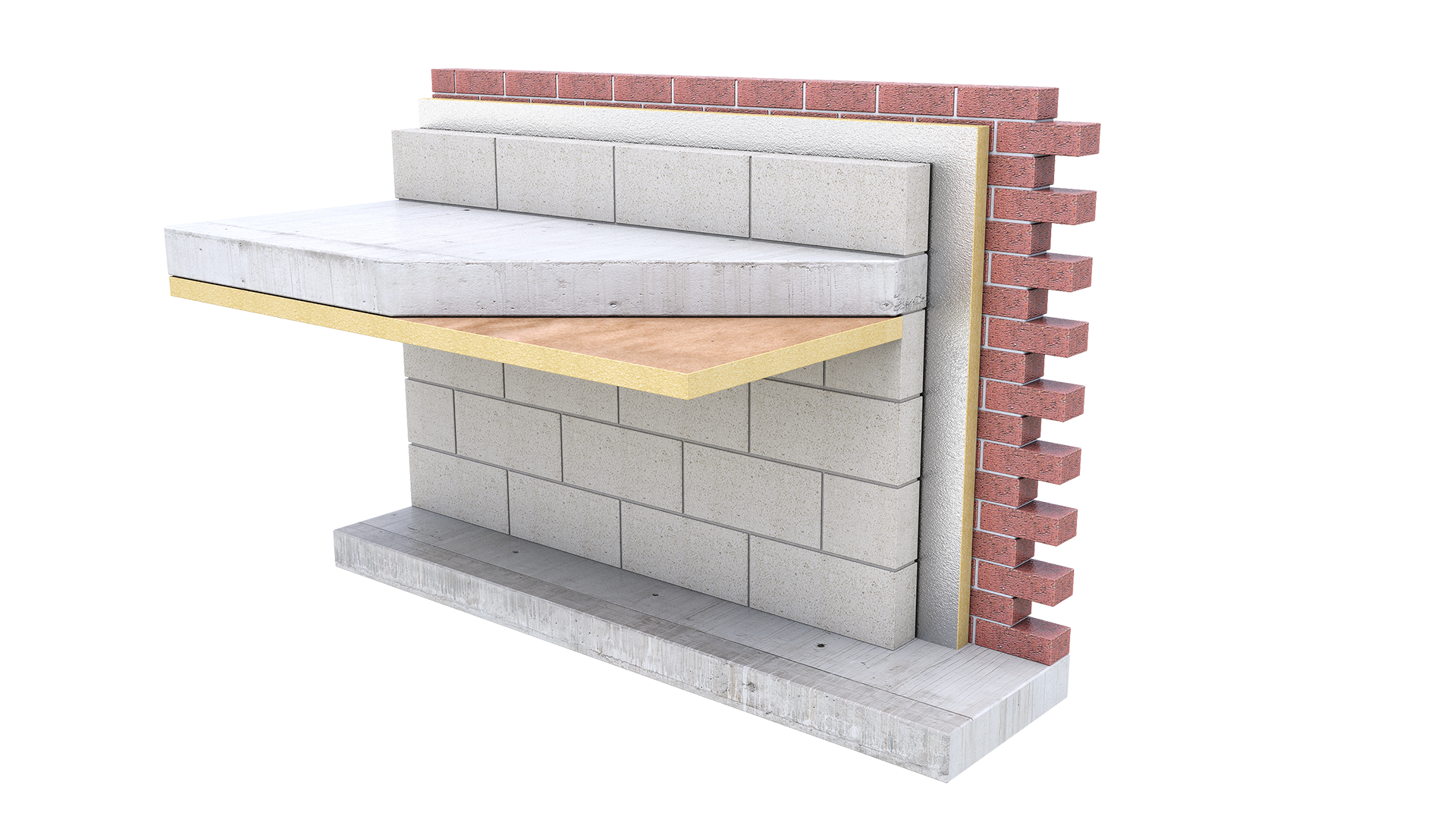

MetecnoThermFC® and MetecnoThermPB® are durable, insulated ceiling and wall panels, combining MetecnoTherm®, with a facing of either 4.5mm or 6.0mm Fibre Cement (MetecnoThermFC®) for internal ceiling applications, and 10mm or 13mm Plaster Board (MetecnoThermPB®) for internal walls. We have you covered where improved fire performance is required and an inspiring interior finish is desired.
The first choice for PIR insulated board systems
-
Warehouse
-
Agriculture
-
Livestock
-
Manufacturing
-
Distribution Centres
-
Retail
MetecnoTherm®
| Panel Properties | ||||||||
|---|---|---|---|---|---|---|---|---|
| Panel Thickness (mm) | 25 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Typical Mass (kg/m2) | 0.9 | 1.5 | 1.9 | 2.3 | 2.6 | 3.0 | 3.4 | 3.8 |
| *Declared R-value (m2K/W) | 1.05 | 1.70 | 2.15 | 2.55 | 3.00 | 3.40 | 3.85 | 4.30 |
MetecnoThermFC® (with 6mm FC)
| Panel Properties | ||||||||
|---|---|---|---|---|---|---|---|---|
| Panel Thickness (mm) | 31 | 46 | 56 | 66 | 76 | 86 | 96 | 106 |
| Typical Mass (kg/m2) based on 6mm FC | 10.4 | 11.0 | 11.4 | 11.8 | 12.1 | 12.5 | 12.9 | 13.3 |
| *Declared R-value (m2K/W) | 1.10 | 1.70 | 2.15 | 2.60 | 3.00 | 3.45 | 3.90 | 4.30 |
MetecnoThermPB® (with 10mm PB)
| Panel Properties | ||||||||
|---|---|---|---|---|---|---|---|---|
| Panel Thickness (mm) | 35 | 50 | 60 | 70 | 80 | 90 | 100 | 110 |
| Typical Mass (kg/m2) based on 10mm PB | 6.6 | 7.2 | 7.6 | 8.0 | 8.3 | 8.7 | 9.1 | 9.5 |
| *Declared R-value (m2K/W) | 1.10 | 1.75 | 2.20 | 2.60 | 3.05 | 3.50 | 3.90 | 4.35 |
*The above Declared R-values are for insulation average temperature of 23°C and in accordance with AS/NZS4859.1:2018 & AS/NZ 4859.2:2018. Contact us for other temperature results
| Panel Details | |
|---|---|
| Core | PIR (Fire-retardant Polyisocyanurate) |
| Width (cover mm) | 1200 |
| Thickness (mm) | MetecnoTherm® - 25 to 100 in 5mm increments MetecnoThermFC® - 29.5 to 104.5 in 5mm increments (with 4.5mm FC) MetecnoThermFC® - 31 to 106 in 5mm increments (with 6.0mm FC) MetecnoThermPB® - 35 to 110 in 5mm increments (with 10mm PB) MetecnoThermPB® - 38 to 113 in 5mm increments (with 13mm PB) |
| Length | 2.4m (other length available on request) |
| Facings | Paper, Foil, White Fibreglass |
| Product Family | MetecnoTherm® - Paper, Foil, White Fibreglass MetecnoThermFC® - 4.5mm, 6.0mm Fibre Cement MetecnoThermPB® - 10mm, 13mm Plasterboard |
| Material Group Numbers | MetecnoTherm® Foil Facing - C1.10 Group 2, 3, 4* (*must be specified on order) MetecnoThermFC® - C1.10 Group 1 MetecnoThermPB® - C1.10 Group 1 |
| Environmental | Zero Ozone Depleting Potential (ODP) |
| Fire hazard properties | AS/NZS 1530.3 |
| Ignitability Index | 0 |
| Spread of Flame Index | 0 |
| Heat Evolved Index | 0 |
| Smoke Index | 1 |
