MetecnoInspire®

Architectural Thermal Façades

MetecnoInspire® is an insulated architectural facade system that offers architects and designers an inspiring palette of colours, attractive surface profiles and excellent thermal properties. MetecnoInspire® also offers an innovative concealed fix system making it an ideal solution for Inspired facade or walling designs.

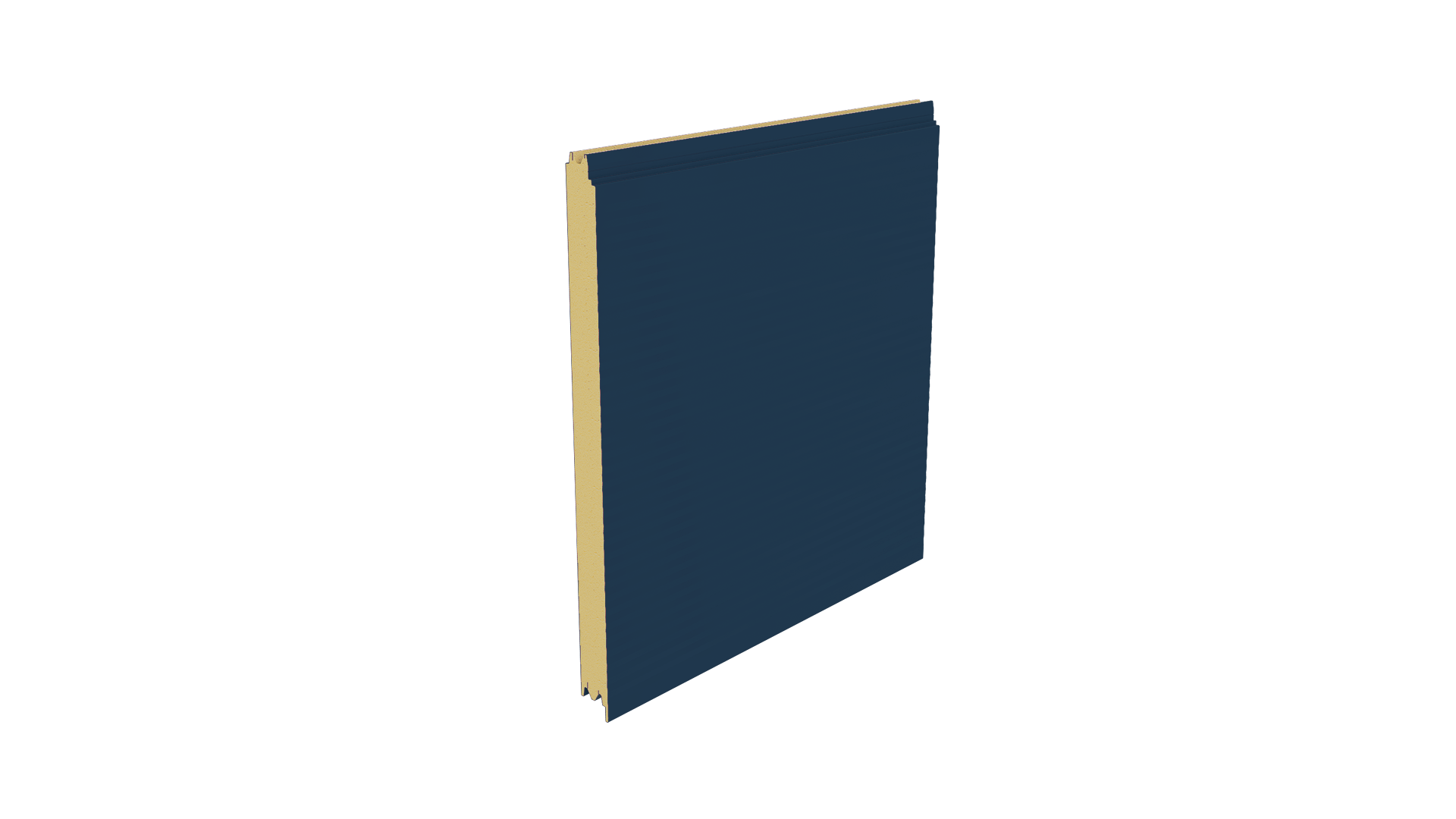

metecnoinspire_panel

The first choice for architectural

  • Commercial

  • Stadiums

  • Retail

  • Shopping Centres

  • Hotels

  • Architectural external finish

Downloads

MetecnoInspire Drawing Pack

Panel Properties
Panel Thickness (mm)506080100
Typical Mass (kg/m2) based on 0.6/0.5mm skins13.914.315.116.0
Declared R-value (m2K/W) at 23oC2.202.653.554.45
Total R-value (m2K/W) at 15oC (Winter)2.492.963.894.83
Total R-value (m2K/W) at 30oC (Summer)2.312.743.604.46

Note: Contact us for other temperatures.

Panel Details
CorePIR
(Fire-retardant Polyisocyanurate)
Width (cover mm)1100
Thickness (mm)50, 60*, 80, 100
LengthUp to 16m (check for availability)
External MaterialBlueScope® Steel 0.5mm, 0.6mm G300
External FinishesSingle V Rib, V Rib, Double V Rib, Micro V Rib, Satinline
Exterior Colour OptionsClassic Cream, Surfmist®, Paperbark®, Evening Haze®, Shale Grey, Dune®, Cove, Windspray®, Pale Eucalypt®, Gully, Mangrove®, Wallaby®, Jasper®, Manor Red®, Terrain®, Basal®, Woodland Grey®, Monument®, Ironstone®, Cottage Green®, Deep Ocean®, Night Sky®. Metallics: Galatic, Cosmic, Rhea, Astro, Aries, Celestian
Internal MaterialBlueScope® Steel 0.5mm, 0.6mm G300
Internal FinishesPlain
Interior Colour OptionsCOLORBOND® IntramaxTM
Paint SystemAS/NZS 2728 & AS 1397
AccreditationsCodemark Certificate Number CM40191
Material Group NumbersC1.10 Group 1 & 2a
Bushfire Attack Level BAL-40 (All exposed core to be covered with flashing)
FM Approval4880, 4881
EnvironmentalZero Ozone Depleting Potential (ODP)
Fire Hazard PropertiesAS/NZS 1530.3
Ignitability Index0
Spread of Flame Index 0
Heat Evolved Index 0
Smoke Index 4
SMOGRA RC< 100

The first choice for construction

MetecnoInspire® having rigid foam PIR (Polyisocyanurate) core between two skins of COLORBOND® steel, forms an exceptionally strong and durable, fire–retardant panel. The panel has a zigzag shaped interlocking panel-to-panel joint, concealing two screws with a centre distance of 30mm fixed at each support.
